The Thermoforming Process:

-Concept or Working part.
All submissions come to is in many forms, it could be a conceptual idea or
someone has an existing part they want to improve. We would work with them to
understand how this part works in your system.

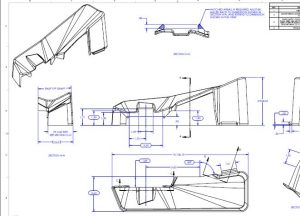

-Drawing
Promark Electronics brings the concept to an engineering team that will work with a CAD drawing or sketch of the idea to start the quoting process.
-Quote
Once we have the design complete and the material selected, we can then produce
a quote based on production needs. This quote will include a tooling (Mold)
package.
-3D Part Data
Before tooling fabrication can start, 3D data is generated for accuracy.
-3D Mold Design
A thermoforming mold is designed to provide the best material distribution for
the actual part’s specific geometry.
-Production Mold
A production, temperature controlled mold is created and actual samples are
provided.

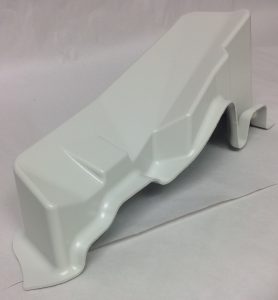

-Thermoformed and CNC Trimmed Product
Dimensionally repeatable product is then produced and trimmed in required
quantities.
-Finished Product
Proper design and material selection allow us to provide consistent products,
delivered on time and fairly priced.
